Cosem SFT12 Transistor (Algemeen)

door Maurice , Dordrecht, 27-09-2019, 00:45 (1889 dagen geleden) @ Hans Rausch †

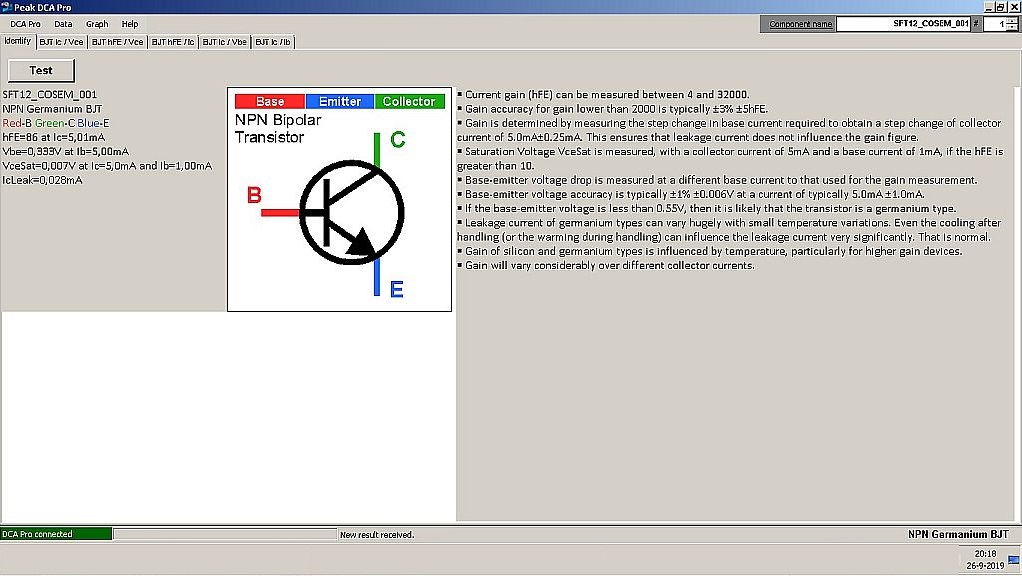

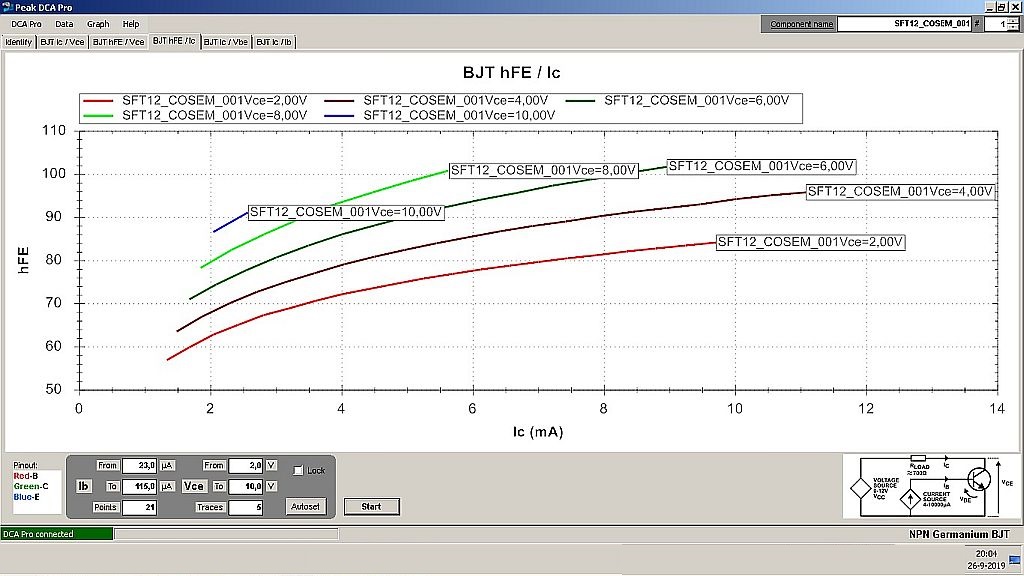

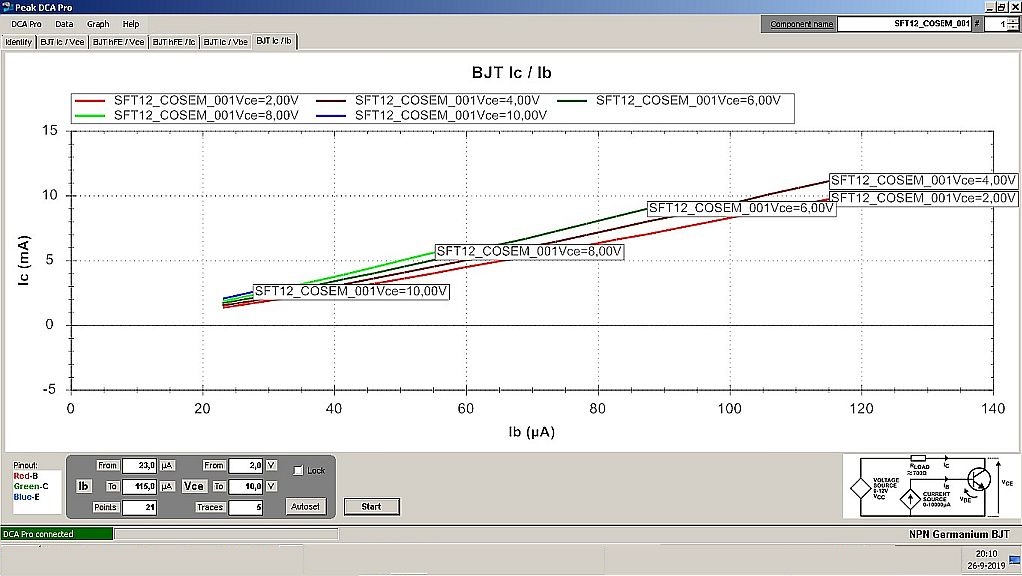

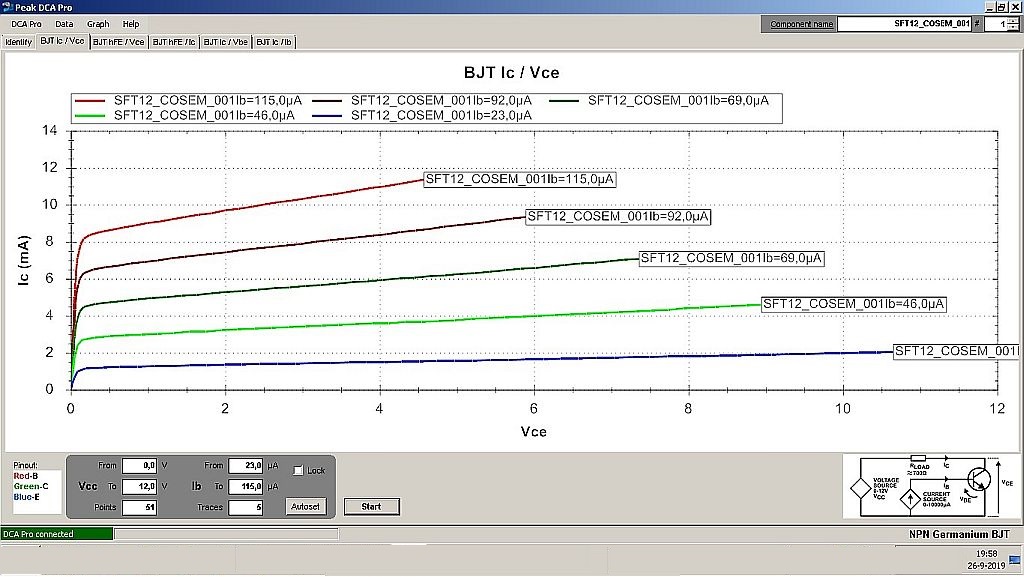

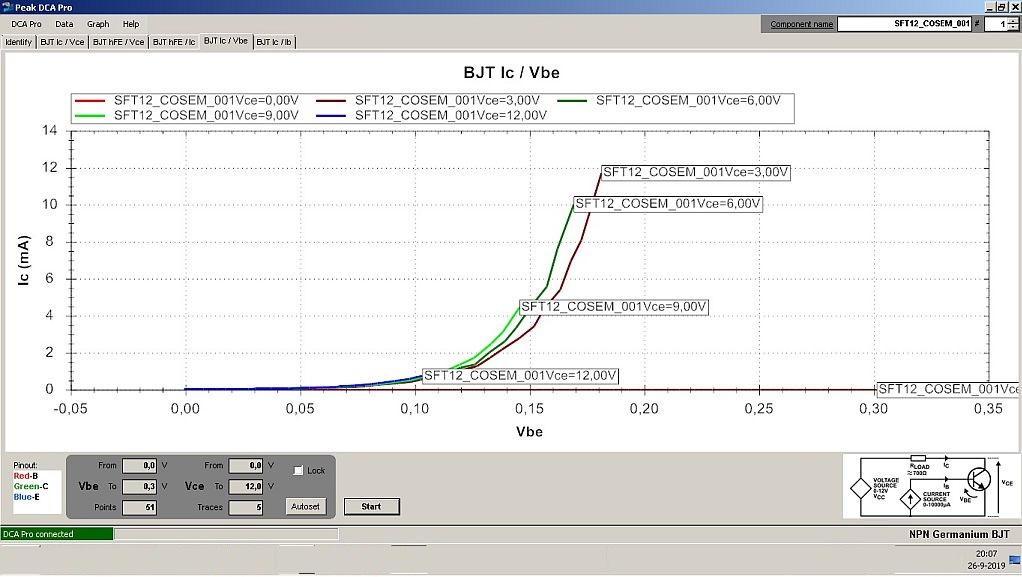

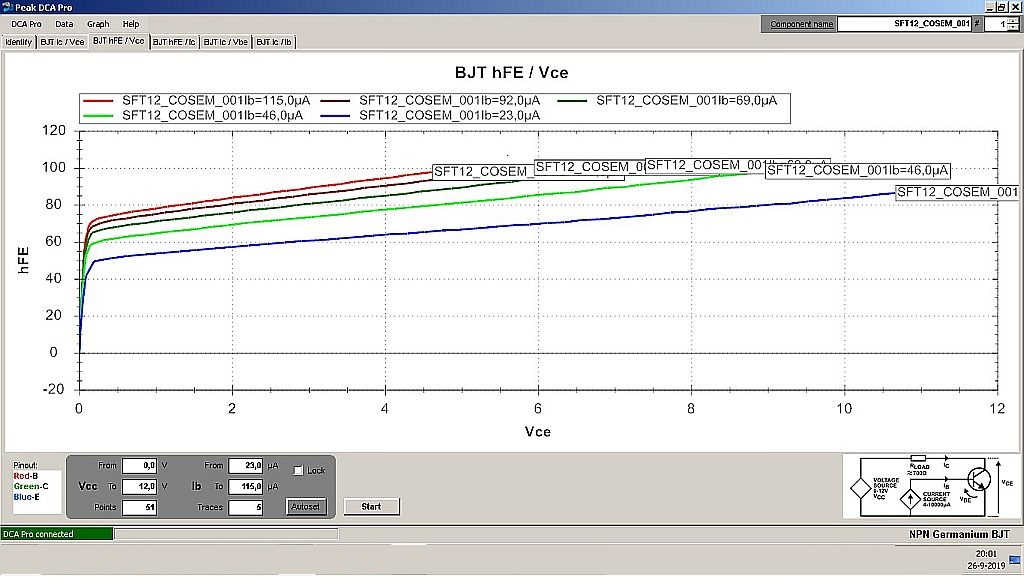

Dit is er uit de DCA75 meeting gekomen.
SFT12
NPN Germanium BJT
hfe 86 bij Ic=5mA
Vbe 0,333 bij Ib=5mA
VceSat 0,007V bij Ic=5mA en Ib=1mA
Ic leak 0,028mA

[image]
