Defect in JVC TM-41EG monitor (Toestel of techniek)

door Otto , Drenthe, 19-09-2020, 19:37 (1529 dagen geleden) @ kris

Ik lag blijkbaar al half in slaap toen ik de tekening maakte... diode staat in eerste versie verkeerd. moet niet over de trafo, maar over de tor. Als je een fet met inbouwde diode gebruikt hebt zat het sowieso goed.

Hallo Kris,

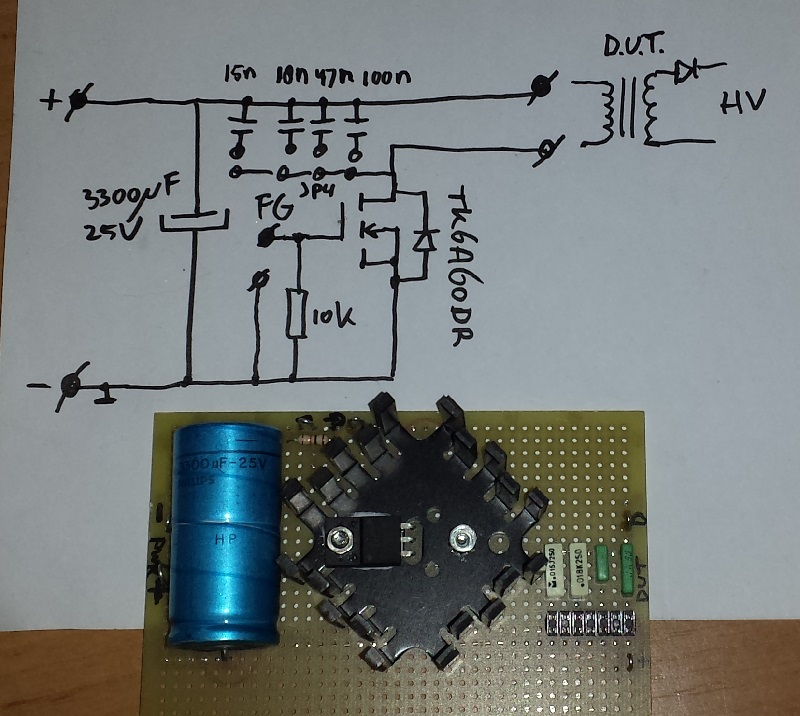

Ik heb de schakeling even op een net printje gezet:
[image]

Ik gebruik inderdaad de interne diode. Met jumpers kan ik de capaciteit kiezen. Ga er binnenkort mee meten.

Wordt vervolgd,
Otto

--
Ohm sweet Ohm...
[image]
